9089K1 Cable Station Premium Smart

Cable Station Premium – A Composable Modular Solution

The Cable Station Premium is a composable modular solution designed for gyms and personal training studios that demand a high-quality, professional workstation. The construction quality, technical solutions, and stainless steel and aluminum components are derived directly from the 9088 All-in-One Rack Premium line, guaranteeing superior finishes.

Cable Station Premium – Components

9089A Cable Station Weight Stack Unit – base module with a 90 kg weight stack
The core of the Cable Station Premium modular solution is the 9089A, which serves as the system’s base structure. The 9089A consists of two 75 x 75 mm uprights, a 90 kg weight stack, and protective shrouds. The front upright, made of stainless steel with a natural finish (no paint subject to wear), integrates the quick height adjustment system for the aluminum pulley of the Adjustable Pulley cable. The rubber-coated cable can be extended to the floor and is multi-directional thanks to a pivot system that ensures smooth and silent movement. The 2:1 pulley ratio allows for gradual and precise weight stack movement. Load selection is done via the classic pin system, connected to a retention spring that prevents accidental loss of the selector pin.

The 9089A also features a Lat Machine cable with a 1:1 pulley ratio, and a Dual Low Pulley, which consists of two independent low pulleys. These can be used separately (2:1 pulley ratio) or simultaneously (1:1 pulley ratio). This configuration offers greater freedom of movement, allowing for independent bilateral or unilateral exercises, and more natural biomechanics, as each limb can move along its own line of pull.

Dimensions: 1435 x 235 x H 2365 mm. Weight: 198 kg

9089B Single Station Foot
The 9089B Single Station Foot is a structural tube with a T-connection system, designed to act as a support base for the 9089A Weight Stack Unit. This component allows the station to stand upright stably, making it freestanding and usable as an independent station without needing to be fixed to a wall or external structures. The Single Station Foot is, however, equipped with pre-drilled holes for floor anchoring, which is strongly recommended to ensure maximum safety during use. Non-anchored installation requires greater care in the supervision and use of the equipment to prevent uses not compliant with the user manual’s instructions, especially with off-center loading.

Dimensions: 1305 x 130 x H 420 mm. Weight: 14 kg

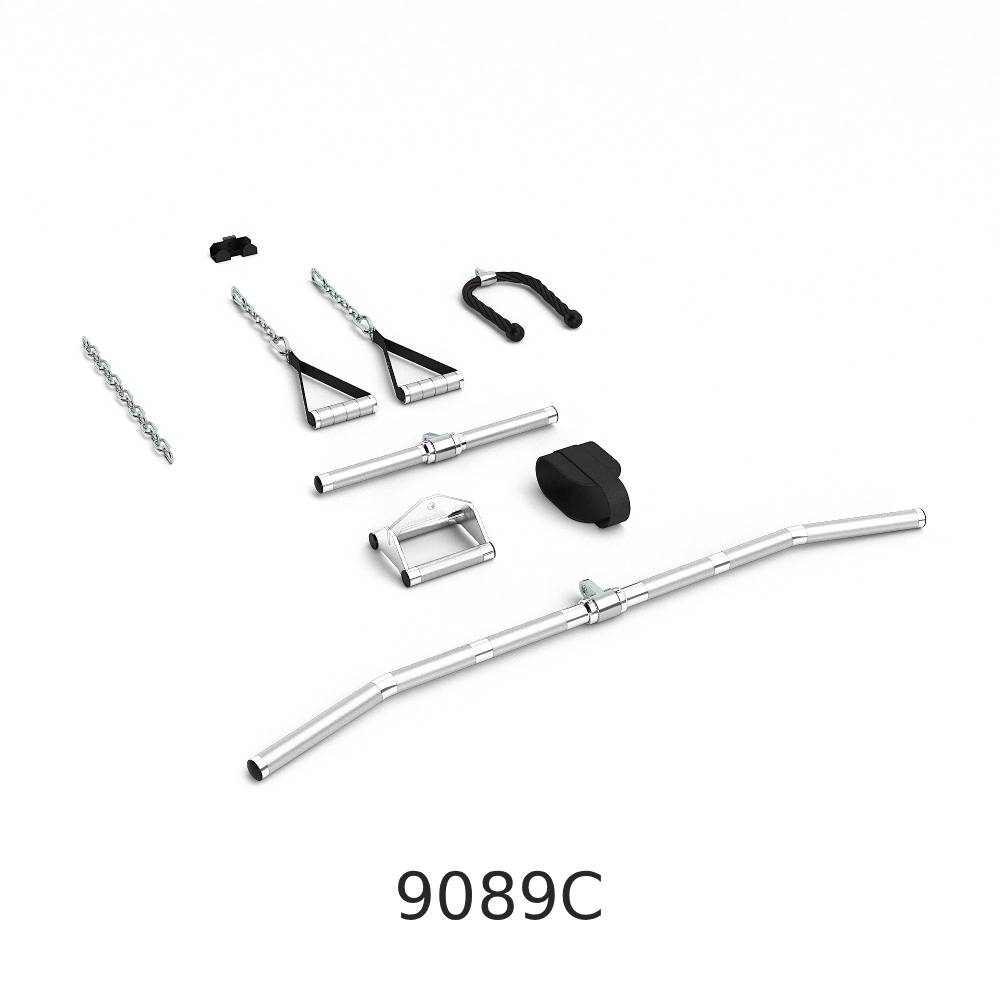

9089C Attachment Set
A set of handles and accessories for cable attachments, consisting of:

1 fabric ankle strap
1 triceps rope, 600 mm, Ø28 mm
1 narrow combo-grip handle, 140×120 mm, Ø28 mm
2 handles with aluminum grips, Ø35 mm with bearings
2 chains, 330 mm, for cable extension with carabiners (190 mm without carabiners)
1 chain, 465 mm, for Lat machine cable extension
Revolving Multi-Grip Bar – Lat bar 1225 mm, Ø25 mm with central swivel
Revolving Short Bar – straight bar, 500 mm, Ø25 mm with central swivel
V-Bar 615 mm, Ø25 mm
Weight: 13 kg

9088/1 Multi-position Pad
The 9088/1 Multi-Position Pad is a cushion (400 x 290 mm) with adjustable height and incline, designed to offer stable and comfortable support during seated or standing exercises with secure positioning for the torso and back. It connects quickly to the front stainless steel upright of the 9089A Weight Stack Unit, providing effective support for cable pulling exercises thanks to its integrated leg rollers that ensure stability and control. The rollers can be easily removed without tools, allowing the pad to also be used as a support point for the torso and back, making the accessory extremely versatile. It is a practical, intelligent, and truly “smart” component that significantly increases the functionality and comfort of the Cable Station, enhancing the training experience with a simple yet surprisingly useful solution.

Dimensions: 810 x 505 x H 405 mm – 400 x 290 mm (pad), L 505 mm (leg rollers). Weight: 14 kg

9089/2 Add-On Load Kit
This kit allows you to increase the load of the Cable Station’s weight stack in two ways: by adding plates with a 50 mm hole, or by connecting elastic bands, which allows for varying the resistance curve and changing the dynamics of muscle work. The kit consists of:

2 plate holders (diameter 50 mm, length 170 mm, with 130 mm of usable loading space);
2 attachment pins for elastic bands.

The plate holders easily insert into the holes of the weight stack plates and, thanks to an integrated magnetic system, remain stable and perfectly flush during use. The elastic band pins attach to the frame of the 9089A Weight Stack Unit and are used in combination with the plate holders, allowing you to create combined resistance (weight + elastic tension) for a more dynamic and progressive workout.

Weight: 3.8 kg

9089/3 1100 Link Kit
The 9089/3 1100 Link Kit is a 1100 mm long joining bar designed to connect two 9089A Weight Stack Units. This allows for creating a wider configuration, transforming the Cable Station into an Olympic barbell rack with the addition of the 9088/8 Roller J-Hooks, as seen in the 9089K3 and 9089K4 versions. The connecting bar, made of 75 × 75 mm steel tubes with a painted finish, features a modular hole pattern that allows for the mounting of the 9088/1 All-in-One Rack Premium Pull-Up Bars. The kit also includes a 1100 mm long stabilizing joining bar designed to connect the two Weight Stack Units at the bottom, increasing the structural rigidity and overall stability of the station.

Dimensions: 1690 x 75 x H 220 mm. Weight: 16.3 kg

9089/4 2400 Link Kit
The 9089/4 2400 Link Kit is a 2400 mm long joining bar designed to connect two 9089A Weight Stack Units, allowing for the creation of a wider configuration that transforms the Cable Station into a Crossover Machine, as seen in the 9089K5 version. The connecting bar, made of 75 × 75 mm steel tubes with a painted finish, features a modular hole pattern that allows for the mounting of the 9088/1 All-in-One Rack Premium Pull-Up Bars. As a Crossover Machine, the Cable Station utilizes the Adjustable Pulley system, characterized by its practical height adjustment and multi-directional pulleys that rotate freely on their axes. To ensure safety and proper mechanical function, the pivots do not fully rotate 180°, slightly limiting lateral range. This feature encourages the user to adopt a position slightly forward from the center of the structure, which is ideal for maintaining constant tension on the cable and ensuring an optimal working trajectory.

Dimensions: 2550 x 85 x H 75 mm. Weight: 13.5 kg

9088/1 Pull-Up Bars
A pair of steel multi-grip pull-up bars with deep knurling. The split grip design allows for high adjustability of hand spacing, adapting to various exercise types. The spacing is easily changed with locking knobs, which allow the bars to be removed without any tools.

Diameter: 35 mm, Length: 445 mm (each). Weight: 2 x 2.65 kg. Max load: 160 kg.

Compatible exclusively with the All-In-One Rack Premium.

9088/2 Dip Handles
A pair of dip handles, 42 mm in diameter, with deep knurling, fixed with a screw knob onto a bracket for quick attachment to the uprights of the 9088 Rack.

Diameter: 42 mm, Length: 450 mm. Weight: 11.1 kg. Max load: 160 kg.

Compatible exclusively with the All-In-One Rack Premium.

9088/6 Bench
An adjustable bench equipped with wheels, a transport handle, and a quick-attachment system for the uprights of the 9088 Rack. Designed to provide support for high-load cable pulling exercises, the 9088/6 integrates leg rollers for securely locking the lower limbs. Paired with the 9088/7 Foot Plate, it transforms the 9088 Rack into a true Cable Pulley Machine with adjustable rowing height.

Dimensions: 1262 x 458 mm – Height: 530 mm (seat, 3 adjustments: 460 mm, 510 mm, 530 mm), 690 mm (leg rollers, min H: 607 mm – max H: 827 mm). Weight: 40 kg. Max load: 260 kg (including max user weight of 160 kg).

Compatible exclusively with the All-In-One Rack Premium; must be attached to the structure.

9088/7 Foot Plate
A footplate designed for performing rowing exercises with a cable. An optional component dedicated to the 9088 All-In-One Premium Rack.

Dimensions: 430 x 350 x depth 312 mm (variable depending on the plate’s incline). Weight: 9.5 kg.

Compatible exclusively with the All-In-One Rack Premium.

9088/8 Roller J-Hooks
A pair of “J”-shaped barbell supports designed for the perforated uprights of the 9088 All-in-One Premium Rack. Equipped with rollers and high-resistance polymer protectors, they allow for precise and frictionless barbell placement, making it easier to center the bar before an exercise.

Dimensions: 80 x 194 x H 215 mm. Weight: 2 x 2.85 kg. Max load: 250 kg.

Compatible exclusively with the All-In-One Rack Premium.

9088/9 Safety Spotters
A pair of safety arms designed for the perforated uprights of the 9088 All-in-One Premium Rack. The primary function of the Safety Spotters is to catch and support a free-weight barbell in case of a failed lift or muscle failure during exercises.

Dimensions: 553 x 56 x H 300 mm. Weight: 2 x 8.4 kg. Max load: 250 kg.

Compatible exclusively with the All-In-One Rack Premium.

9088/10 Bar Holder
A pair of attachments designed for the vertical storage of two Olympic barbells on the rear uprights of the 9088 All-In-One Premium Rack. Each holder is sized to accommodate barbells with Ø50 mm collars (Olympic standard) and can be easily positioned at the desired height using the rack’s hole insertion system. A practical and safe solution to optimize space and keep the workout area tidy.

Dimensions: 122 x 84 x H 138 mm. Weight: 2 x 1.1 kg. Max load: 50 kg.

Compatible exclusively with the All-In-One Rack Premium.

9088/11 Plate Holders
A set of 6 stainless steel plate holders, designed for installation on the rear uprights of the 9088 All-In-One Premium Rack. Each holder is compatible with plates having a Ø50 mm central hole (Olympic standard) and allows for tidy, safe, and easily accessible storage. The set includes six spring clips to lock the plates in place.

Dimensions: 277 x ⌀ 48 mm. Weight: 6 x 1.5 kg. Max capacity of each plate holder: 100 kg.

Compatible exclusively with the All-In-One Rack Premium.
